VA3000E 10X Zoom Video Conference Kits HD Video Audio Conferencing System Business Video Conference Camera
TONGVEO VA3000E conference kits bring quality and ease to your conference calls. Including everything you need to collaborate professional meetings. The camera and speakerphone both connect with a hub via DIN6 port, and the hub connects to PC via USB port. No need to fumble with wires and other connections when getting ready for important business discussions.
The camera features a 1/3 inch, 2.1 megapixel high-quality CMOS sensor, supporting a resolution up to Full HD 1080P. The speakerphone combo is composed of 4 single-point microphones with 360° Omni-directional audio-pickup. Easily connect and present! Technical specifications: VA3000E video conference kits:
| Detail Parameters(CAMERA): |
| Model NO. | VA3000E camera | Image Senso | 1/3 inch SONY HD CMOS |
| Effective Pixels | 2.1 mega pixel | Focal Length | F=5.0 mm~50.0 mm F1.8(W)~2.1(T) |
| Gain Control/Focus | Auto/manual | Video Output | USB2.0 |
| SNR Ratio | >50dB | Zoom | 10x optical zoom |
| Horizontal Resolution: | 1080P, 720P | Control Terminal | USB,RS-232C,RS485 |
| Pan/Tilt Movement Range | Pan:±175° Tilt:-35 °~+90° | Control Protocol | VISCA,PELCO-D,PELCO-P |
| Detail Parameters(SPEAKERPHONE): |
| Model NO. | VA3000E Speakerphone | Bluetooth | Bluetooth devices available |
| Voice Technical Parameters | Acoustic echo cancellation(AEC): >65dB;
Echo length cancellation:≥400ms;
Birdirection noise compression:<25dB;
Audomatic direction technology of intelligent micophone(EMI) automatic gain control. | Audio Parameters | Microphone frequency response:100Hz-22Hz;
Speaker frequence response: 100Hz-22Hz;
Speaker volume: 95dBat the most;
Microphone sound-pickup diameters:6 meters, 360 degrees full range. |
| IR Reception | Angle:360 °
Distance: 10m transparent transmission on available; | Expansion Mic | 2 external microphones for connection makes the sound-pickup diameter up to 10 meters |
| Detail Parameters(HUB): |
| Model NO. | VA3000E hub | Power Supply | EC3800 plug(DC12V) A dapter input AC100V-AC220V;
output DC12V/1.5A |
| Connection Cable | Mini DIN6 data line*2;
Length: 5m (10m/15m for options) | USB Cable | USB 2.0 cable |
| Compatibility | Support Windows, Android, iOS and Linux Drive-free automatic recognition of cameras, microphones and speakers compatible with Zoom, Lynch, Vidyo,Skype for business and etc. | Dimension | 100mm*62mm*27mm |
Main features of the TEVO-VA3000E video conference kits:
Easy plug-and-play solution that does not require any software or driver to setup;
Compatible with popular meeting software such as Skype, MS Teams, Zoom, BlueJeans, etc;
51.3° wide-angle PTZ camera with 1/3 inch, 2.10 mega pixel high quality CMOS sensor supporting a resolution up to Full HD 1080P;
The camera supports up to a 10x optical zoom Powerful algorithm and allows camera lens to have fast, accurate and stable auto-focusing;
Preset: 6 preset positions via IR remote control; 3 preset positions via speakerphone;
Low Noise CMOS effectively reduces video noise and ensures image sharpness;
Speakerphone supports Acoustic Echo Cancellation, Automatic Gain Control, Bidirectional noise compression and Automatic Direction Locating microphone technology;

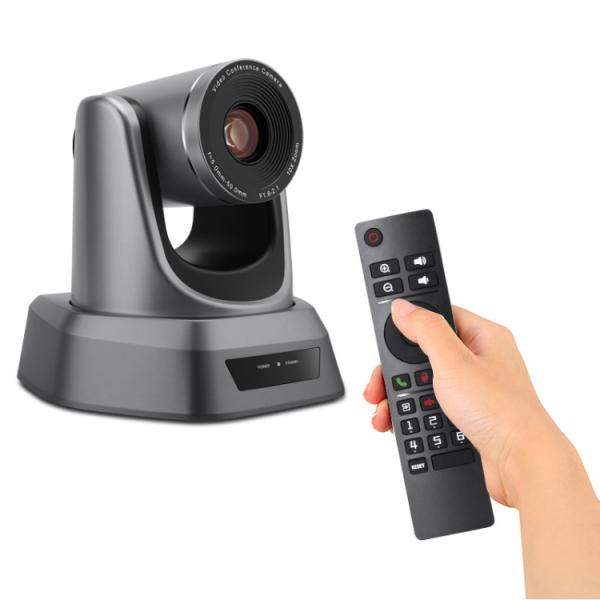

Integrated Bluetooth connectivity on the speakerphone allows you to connect your mobile phone for hands-free calls; Speakerphone allows for up to 2 expansion microphones to be connected to expand the audio pick-up range to an incredible 10m (EXP-MIC Sold in Pairs). VA3000E video conference kits-camera:
VA3000E video conference group-microphone:
VA3000E video conference group-IR remote controller:

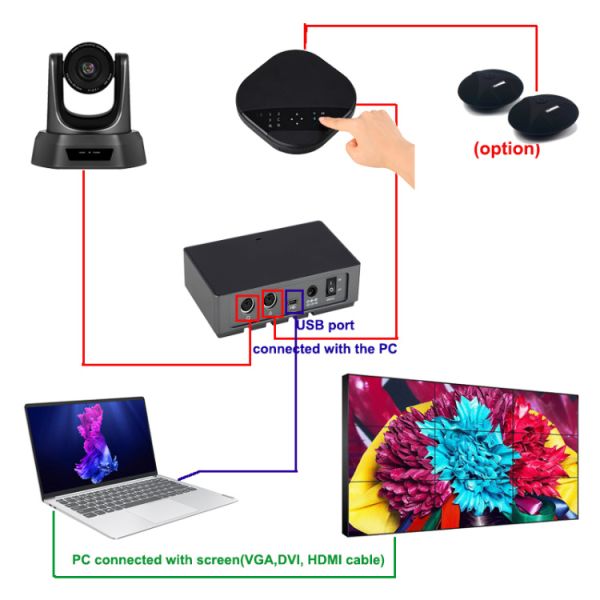

Connection of the TEVO-VA3000E hd conferencing camera group:
1.Delivery:
For sample orders, we have products in stock; same-day shipping when we get the order;
For purchase order, we will ship within 3-7 working days;
2.Packaging:
Foam packaging inside; standard carton packaging outside.
1.Who we are?
Due to our extensive partner network, Tongveo can play a decisive role in international or global video conferencing projects. We focused on developing and implicating the technology of video conferencing products, SD, HD PTZ video conference camera and omnidirectional conference microphone speakers. We are professional and we have a good reputation in product development, production, sales and after service. We can design produce and sell directly in order to ensure the most competitive price and excellent quality under control. All of our products are compliant with CE, FCC and Rosh standards. We have established a sound sales & service network. Offices have been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc. We also successfully sold our products to many foreign countries. We are sincere to make any meeting better and easier! Welcome your OEM/ODM orders.
2. What we do?
We designing, tooling, produce and sell directly in order to ensure the most possible competitive price and excellent quality under Control. Our Product: Video conference camera, Video conference omnidirectional microphone, video Conference software product Video conference system, audio conference system, Network Conference system, Education system, Tele-medicine system, Courtrooms, Public safety system, Financial facility, Airports, Prisons, Highways, Port, Forest Fire Prevention, Schools and Customs systems.
Our advantages
1.Strictly QC process 1) Four times strict 100% inspection Raw Material Inpection + Semi-finished product inspection + Finished product inspection + Customer commissioned inspection (AQL 2.5 Standard)
2) 72 hours of the pre-delivery aging test. We own our independent aging test lab and all products undergo 72-hour aging tests before shipment.
2. Warranty We provide 24 months warranty guarantee, replacement within 3 months, and 24 months of free maintenance. Enjoy lifetime technical support service. (firmware upgrade service etc )
3. Qualified Certificates. Our products are produced in strict compliance with international standards ( CE, FCC, RoHS, VCCI, ISO 9001 ).
4. Japanese Production Guide. Completely follow the strict Japanese production standards to guide production.
About certificate:
We have got CE, ROHS, FCC and IS9001 certificates. We will make the production strictly according to the rules.
01. What kind of camera and microphone should l use?
Most laptops and monitors come with built-in cameras and microphones-these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and speakerphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.
02. Is it easy to operate?
Yes, Setting up a conference room with TONGVEO doesn't require a technology degree - just connect the camera to a TV and the internet, give it power and pair it to your account to start making calls. There simply isn't a more powerful or easier-to-use video conferencing solution available.
03. Can I bring more than one person into a call at the same time?
Yes. We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their laptops, pad or mobile phones,500 different video conferencing systems full of people, or some mix of individuals and video conferencing systems depending on your preferences, there are some different layout options for how you want to view those larger group calls.
04. What is the resolution of your cameras?
We have 1920x1080p@60fps progressively output, and 1080p@30fps also 720p@30fps.
05. What is the Video Connector?
There are USB 2.0, HDMI HD-SDI, and USB Video output.
06. What is the zoom of your video conference cameras?
Support fixed focus, 3x 10X, 20X,30X optical zoom.
07. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCAPELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
